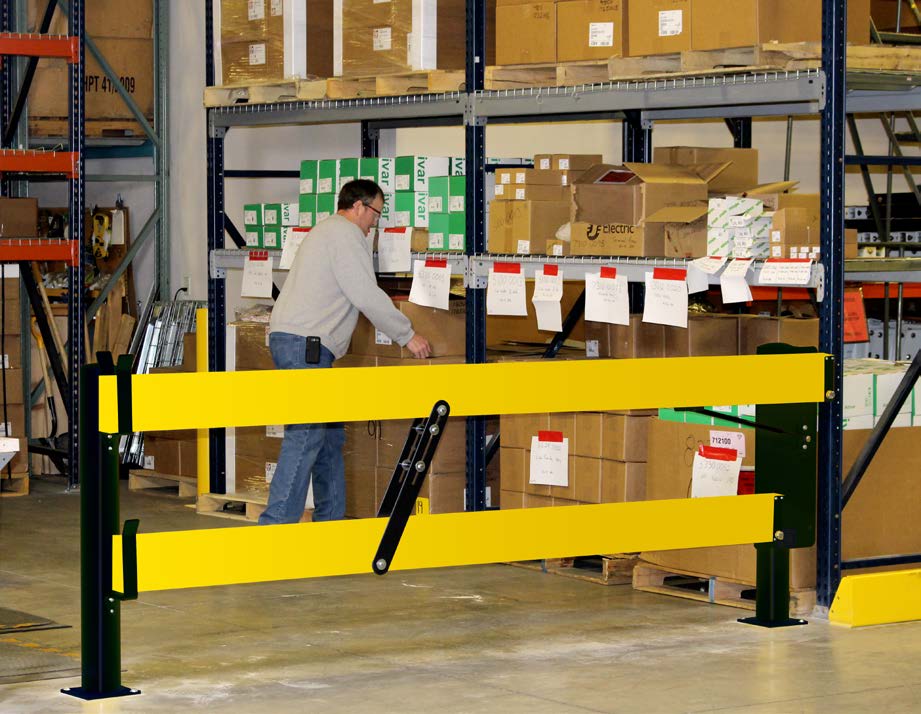

Safe-T-Gate™ Vertical Barrier
Benefits
Need a cost-effective barrier that separates and protects?
This cost-effective vertical pivot lift gate is a personnel barrier that gives employees quick, easy entry to protected areas whenever needed.
- Access: Counterbalanced lightweight barrier makes operation easy.
- Versatility: Use independently or as part of a guardrail system.
- Width: Maximum clear opening of 12' to allow for pallets and products.
Looking for separation that still gives pedestrians access?
Safe-T-Gate Vertical Barrier provides easy pedestrian access whenever needed. At the same time, it separates and clearly defines areas for pedestrians to focus on work, not in-plant vehicle traffic. While it's not designed to stop material handling vehicles, Safe-T-Gate Vertical will absorb minor bumps with little or no damage.
- Protection: Helps facilities meet guardrail requirements under OSHA's 1910.29 Walking Working Surfaces standard.
- Ease in operation: Combines with other facility safety products for a more comprehensive solution tailored to meet your facility's specific needs.
- Compliance: Helps meet requirements of OSHA Standard 1910.23 for "protection of wall openings and holes" and the guard rail requirements under OSHA Standard 1910.29 (Walking Working Surfaces).
Additional Rite-Hite® Barrier Solutions
Is your lift gate too cumbersome to open easily?
Desinged more for separation than protection, the Safe-T-Gate Vertical Barrier will absorb minor bumps with little or no damage, stopping up to 1,000 lbs.
Product Specifications
- Two 43″ (1100 mm) high x 5″ (130 mm) diameter black steel posts
- Two 7″ (180 mm) high x 3″ (75 mm) wide PVC safety yellow rails
- Safety gates available for openings from 4′ (1200 mm) to 12′ (3658 mm)
- Posts can be common members with GuardRite Flex Safety Barrier
- Counterbalance system for easy manual operation, requiring less than 15 lbs. (7 kg) of force
- Upward biased in gate’s fully raised position, downward biased in fully lowered position
- Designed to integrate with Rite-Hite’s Dok-Lok® Vehicle Restraints to ensure proper sequence of operation and full-time safety
Does your barrier solution make work more efficient?
Safe-T-Gate Vertical is an ideal, cost-effective solution for:
- Creating an access point into work areas or other parts of a facility that need to be separated and protected, even at the loading dock.
- Acting as a physical stopping point before accessing hazardous areas.
Any industry or type of facility will benefit from this solution.
- Warehouses and Distribution centers
- Manufacturing and production facilities
- Automotive facilities
- Cold storage facilities
- Food & Beverage facilities
- Pulp, Paper and Packaging facilities
Contact your local representative to find out if Safe-T-Gate Vertical is the right personnel barrier for you.
