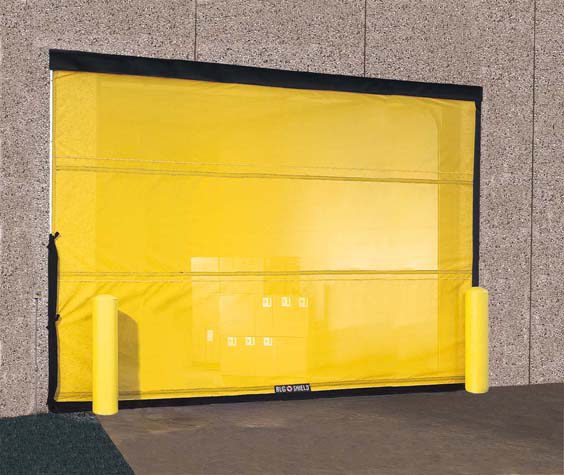

BugShield Sliding Screen

Allow fresh air in
Keep pests out
Strong, vinyl coated mesh


Curtain Material: Heavy-duty vinyl coated mesh, 17 x 11 weave, .025" thread diameter. Available in safety yellow, red, blue and gray. Optional 12 x 8 weave, .028" thread diameter available in black.

Track and Trolleys: Galvanized steel track and mounting hardware is standard. Trolleys have 1 inch nylon wheels that are spaced every 12".

Drive System: Manual operation is accomplished by sliding the curtain in the trolley and track system.

Seals: Water resistant Hypalon® seals at top and bottom. Nose seal further protects opening.

Temperature Range: -40° F to 150° F (-40° C to 65° C)

Warranty: Limited 1 year parts and labor. Rite-Hite Doors also offers an exclusive 1 year money back guarantee.

  • Allow fresh air in for comfort and productivity.
  • Enable light to enter the work area.
  • Deter theft and vandalism.
  • Door opens horizontally and is a visual barrier at the opening.



Minimum size: 14' x 15' (4267 mm x 4572 mm)
Maximum size: 20' x 18' (6096 mm x 5486 mm)
