Fan-Commander 2.0

Control up to 24 Rite-Hite Direct Drive HVLS Fans from a single location

The Fan Commander 2.0 is the standard control station for Rite-Hite Direct Drive Fans (insert link to products/industrial-fans/why-rite-hite-fans/why-direct-drive). The wireless touch screen control station allows for operation of up to 24 Rite-Hite direct drive high volume, low speed (HVLS) fans from a central location. Divided into four zones, the Fan Commander 2.0 allows for turning fans on/off, adjusting the fans’ speeds, and setting up schedules for independent fans or an entire zone. Standard Ethernet connectivity allows remote control access, from PC or mobile app

Control

  • Wireless communication and diagnostic monitoring between controller and fans
  • Four zones allow user to control fan speeds and usages simultaneously or independently
  • Adjust fan speed in 1% increments between 20% and 100%
  • Mesh network - up to 400' between fans
  • Password protection prevents unauthorized adjustment of settings
  • Schedule fans to operate only when needed to save energy
  • Optional sensor controls fan operation based on temperature within a facility
  • Dimensions: 10.5"W x 8.25"H x 3.6"D. Screen size is 7" (measured diagonally)
  • IP 40 Rated
  • Internal battery retains custom settings in the event of a power failure

System Integration

  • Optional Input/Output Module allows integration to automation system
  • BACnet capable

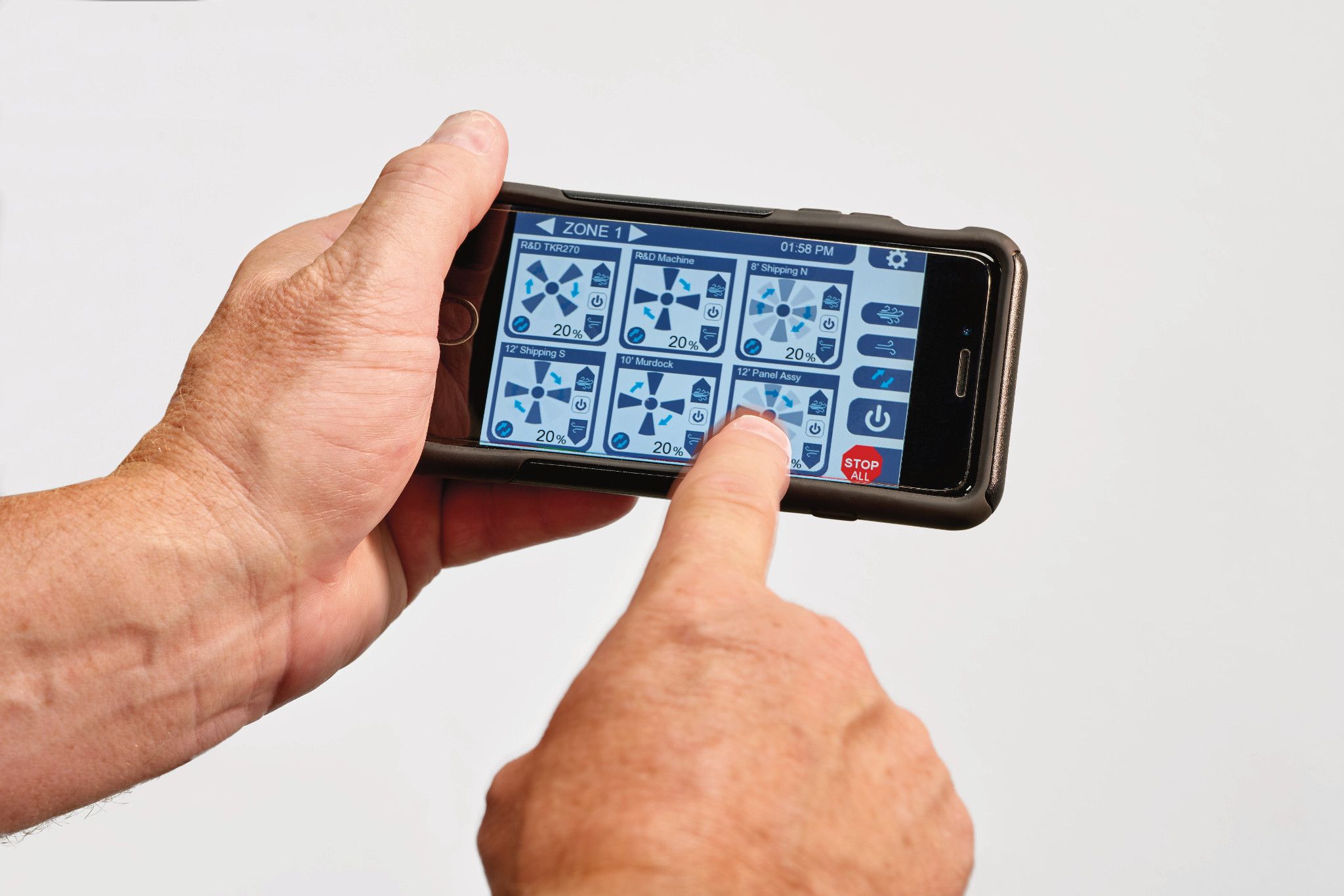

  • Standard Ethernet connectivity allows remote control access from PC or mobile app
