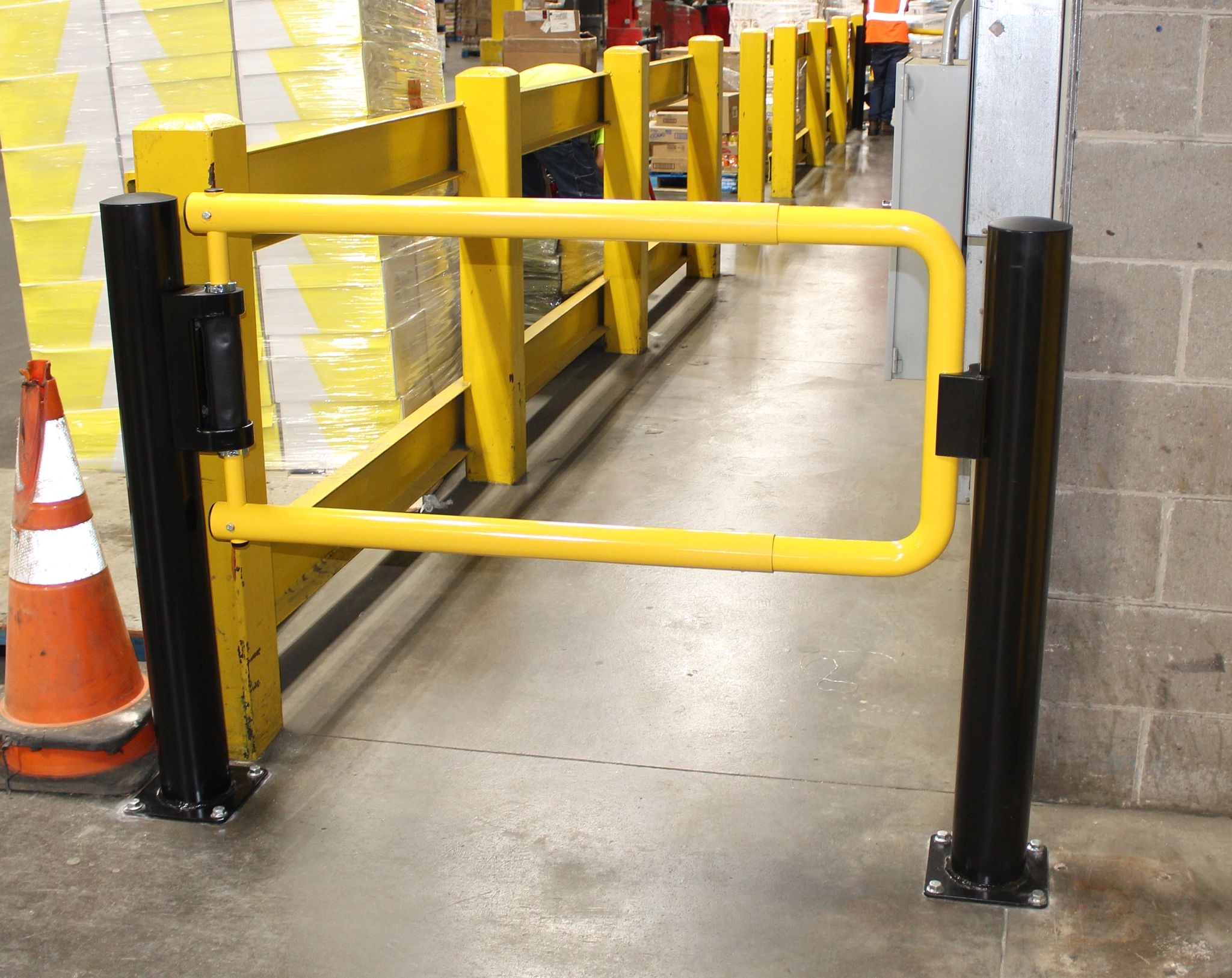

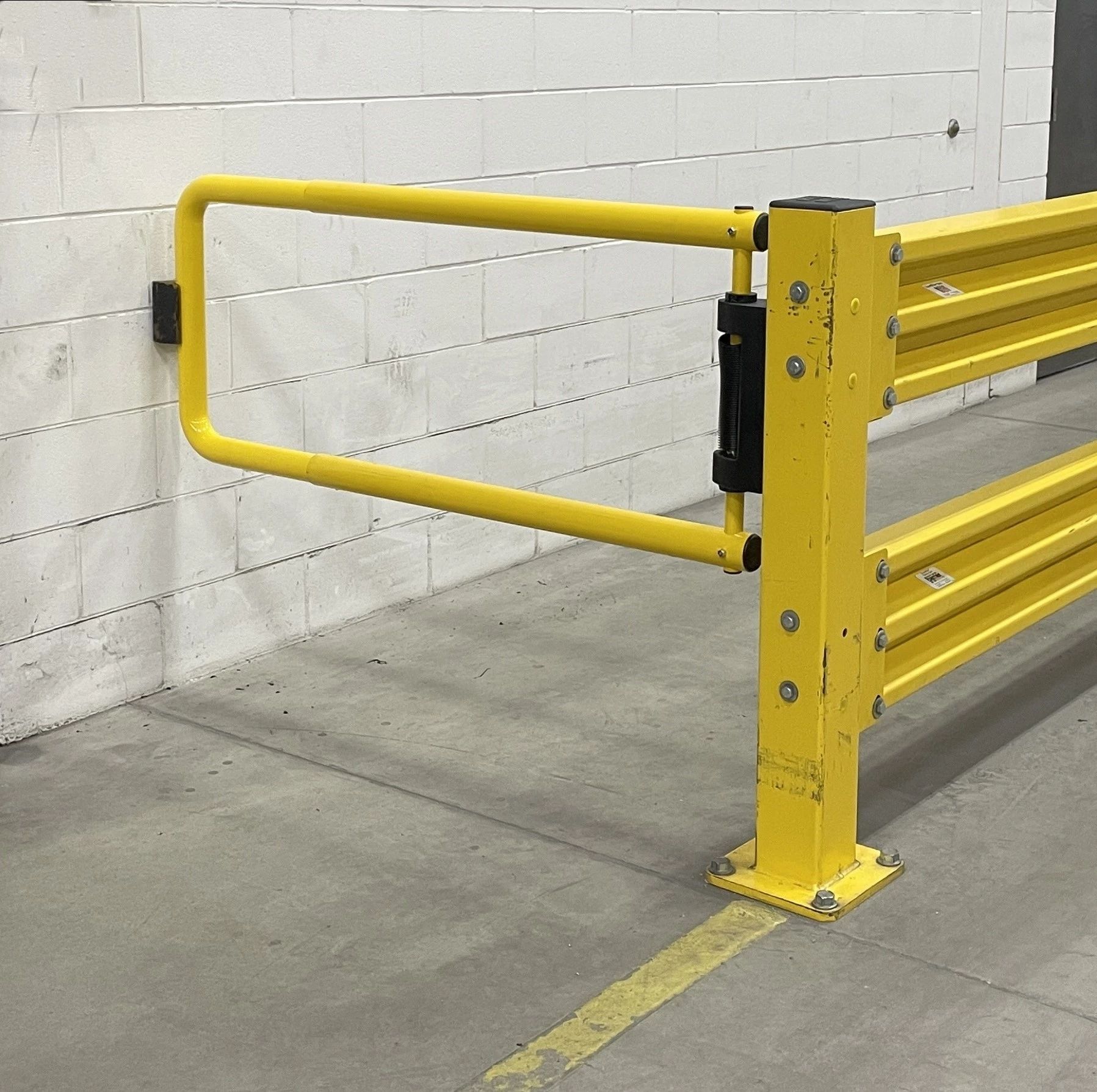

Safe-T-Gate™ Pro Swing Barrier

Want to give workers easy access while looking out for their safety?

The adjustable, easy-to-install Safe-T-Gate Pro Swing personnel barrier gives pedestrians in your facility access wherever needed — but only after it stops them for a moment before entering hazardous vehicle traffic zones unaware.



Need a solution that raises the yellow line to help prevent accidents?

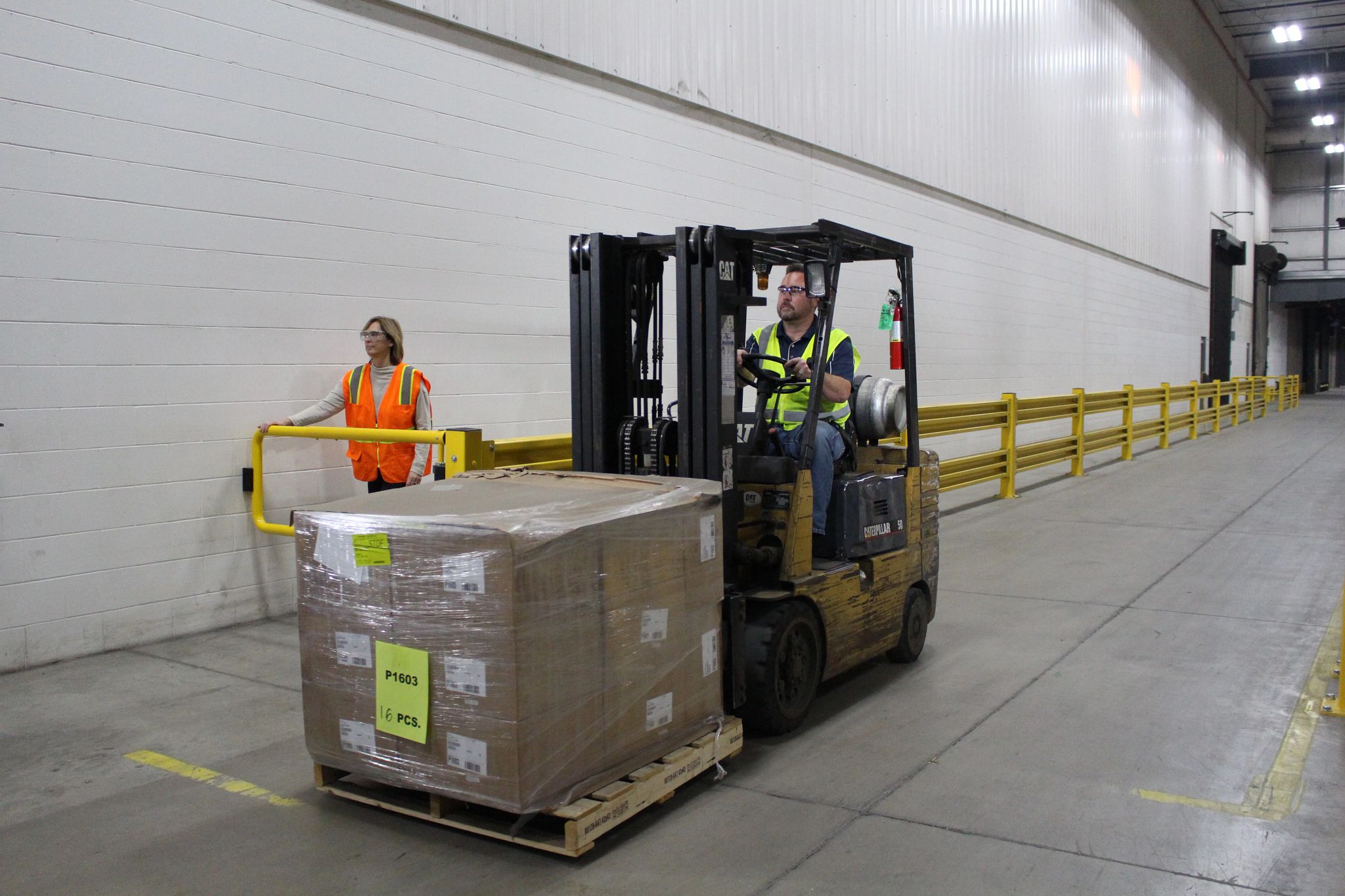

Your teams have a lot to think about, and a lot to do in short timeframes. Like everything else in your facility, material handling equipment moves fast. Safety swing gates define traffic zones for separation while making pedestrians pause and look, creating safe access points into work areas or other hazardous parts of your facility.

• Protection: Added physical layer to separate pedestrian walkways from traffic.
• Reliability: Tested, proven design and materials are optimized for safety.
• Compliance: Meets OSHA’s 1910.29 Walking Working Surfaces guardrail requirements.

Additional Rite-Hite Barrier Solutions

• GuardRite® Polymer HD Barrier
• GuardRite® Steel Barrier
• Safe-T-Gate™ Vertical
• GuardRite® Removable Handrail
• Safe-T-Signal® Intersection Warning System

Will your barrier do its job without stopping employees from doing theirs?

Not all industrial swing gates can create customized pedestrian access points to fit your needs. Rite-Hite’s Safe-T-Gate Pro Swing barrier has adjustable telescoping rails to adjust to your desired opening.

Product Specifications:

• Durable 2.5" (64 mm) diameter safety yellow powder coat steel rail assembly.
• Rail heights centered at 21" (533mm) and 42" (1067mm) to meet OSHA 1910 Walking Working Surfaces requirements.
• Telescoping rails accommodate openings between 36" (915 mm) and 60" (1525 mm) wide for easy, adjustable field installation.
• Can mount independently virtually anywhere, including walls, beams, flat surfaces, or square or round posts.
• Universally designed to mount for left or right operation, opening into the safe zone in either direction.
• Optional 43.75" (1111 mm) by 5" (127 mm) diameter predrilled steel posts customize pedestrian access points to fit your needs.

Will your facility benefit from safer, simpler access points?

Safe-T-Gate Pro is a cost-effective safety swing gate that helps your team members practice safer habits in hazardous areas. Easy to install, easy to operate — easy to help lower your risk of safety events in or around:

• Walkways
• Work areas
• Intersections
• Loading dock interior

Combine with existing surfaces, such as other Rite-Hite safety barriers, to maintain safe traffic patterns at intersections.

Many industries or types of facilities will benefit from this solution, such as:

• Automotive
• Food & Beverage
• Warehousing and Distribution
• Pulp, Paper and Packaging
• Manufacturing and Production facilities
