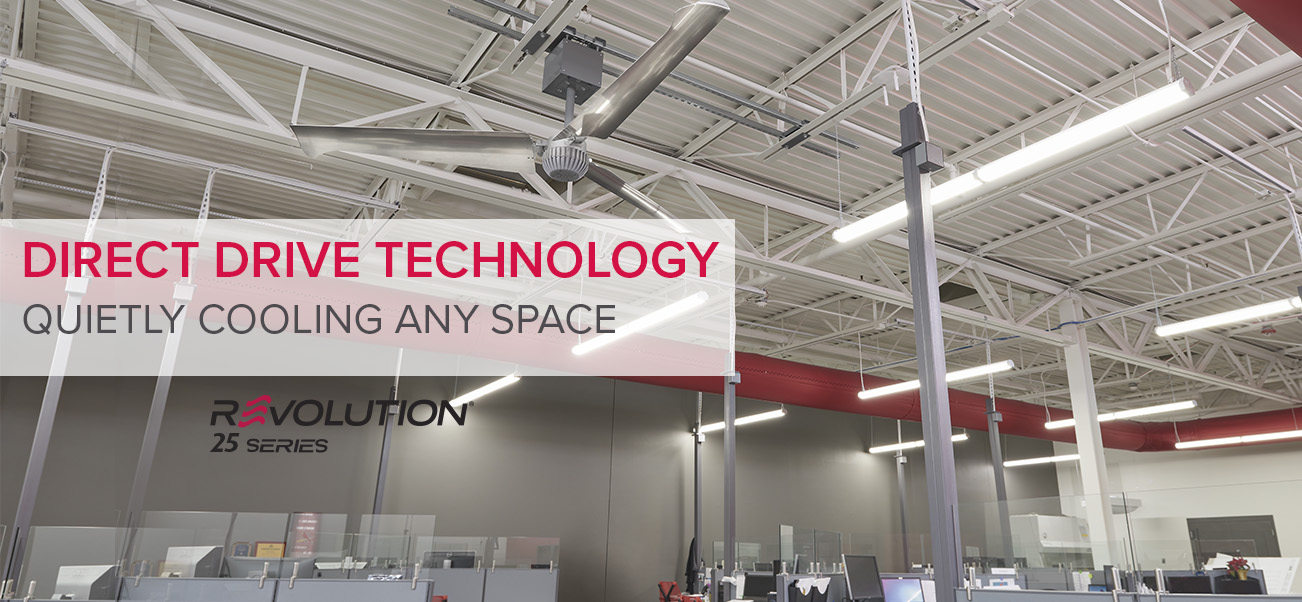

Revolution 25 Series

HVLS Industrial fans are an efficient and economical way to move large amounts of air, helping create comfortable and productive environments. They can be a simple upgrade for any existing facility, or a smart, economical, green choice for a new building.

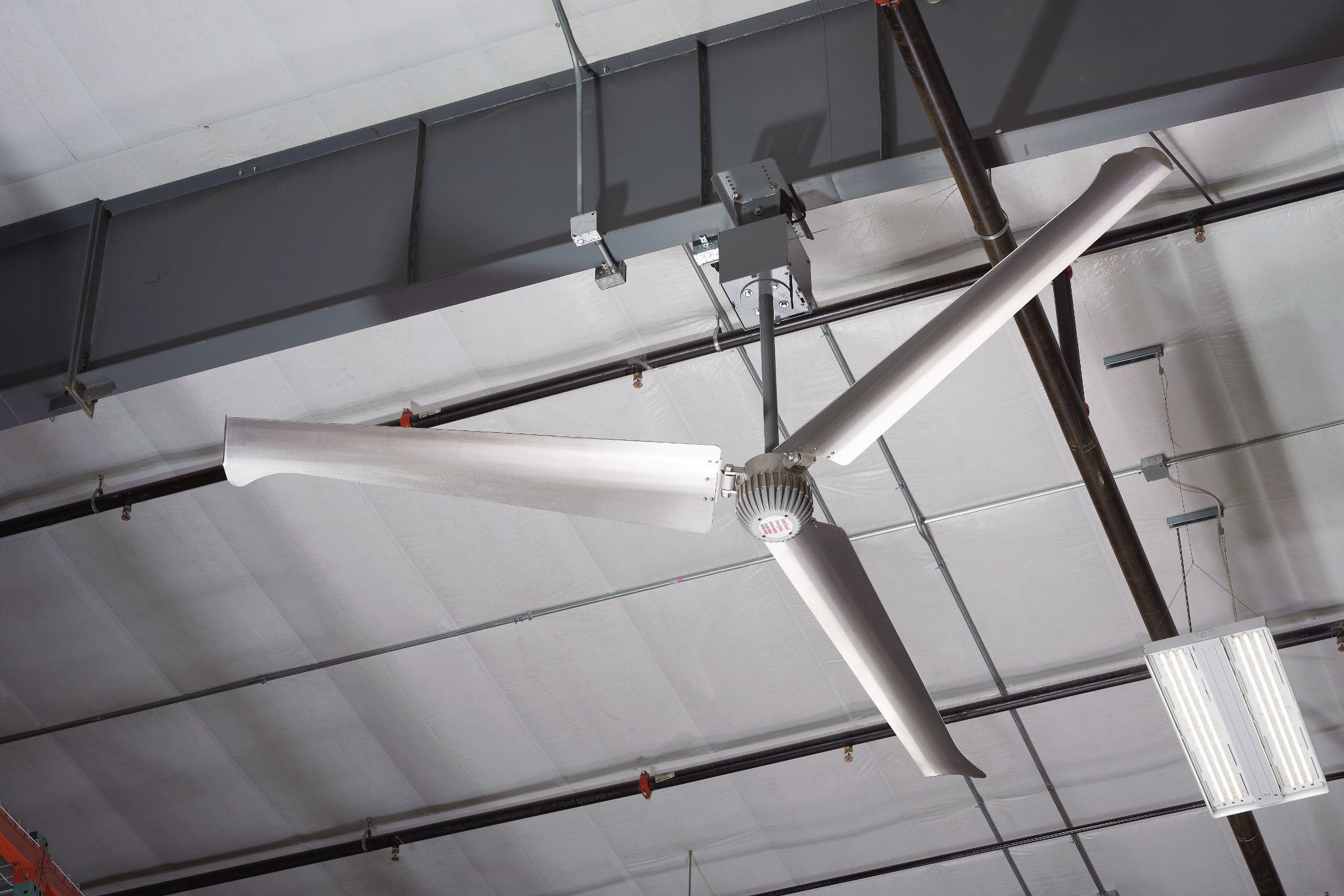

The Revolution® 25 Series delivers comfort to smaller spaces. This Direct Drive HVLS fan is designed for spaces where aesthetics are important.

Performance

  • Direct drive motor replaced the need for a gearbox. Say good-bye to noise and oil.
  • Exclusive aluminum mill finish blades incorporate tilt, taper, and twist to produce consistent airflow across the entire length of the blade, eliminating pockets of stagnant air under the center of the fan
  • Available in 6’ (1830 mm), 8’ (2440 mm), 10’ (3000 mm), and 12’ (3660 mm) diameters.
  • Covers 17,500 sq. ft., moving air up to 75 ft. in all directions from the center of the fan. See air speed charts for specific air movement in each fan zone.
  • IP 40 Rated

 Construction

  • The blade and hub are rotationally balanced for smooth, efficient performance
  • Maximum weight is 185 lbs. Actual weight varies according to the fan size and mounting style
  • Backed by Rite-Hite’s 50 year track record as an industrial manufacturer

Safety

  • All fans feature a hub to motor connection with integrated safety cable and mounting bracket
  • Blades are attached to the hub in two specific ways; the blade is seated into a secure position on the hub arm and then locked in with a bolt that is tightened with a torque wrench to 75 foot-pounds.
  • The blade to hub connections is strengthened by a vibration-absorbing bushing to help reduce the stress by 50 to 75%.

Simplified Design Reduces Installation Costs

This industrial fan was designed with installation simplicity in mind – which means you’ll save time and money. Fans are pre-wired and factory configured for each application and cooling begins almost immediately with standard WiFi controls.

Controls

Touch screen WiFi controls are customizable to a 7-day schedule with the ability to automatically adjust fan speed based on temperature (optional sensor required). Standard Ethernet connectivity allows remote access to controls and can also integrate with a building management system.

Warranties

  • 3 year parts & 3 year labor warranty
  • 10 year structural integrity warranty
  • Lifetime warranty on workmanship of blades and interlocking fan arms
  • 1 year customer satisfaction money-back guarantee

Applications

Direct drive HVLS fans can be seen in a wide range of facilities across a variety of industries:

  • Restaurants
  • Retail
  • Schools/Universities
  • Offices
  • Food Manufacturing Facilities
  • Pharmaceutical Processing Centers
  • Hundreds of Other Applications

Locate a Rep Contact Us

Rite-Hite HVLS Fan Comparison

  Revolution 150 Series
Diameters 8', 12', 16', 20', 24' 16', 20', 24' 8', 12', 16', 20', 24' 6', 8', 10', 12'
Blades Aluminum Aluminum Aluminum Aluminum
Blade Finish Mill-finish standard, custom colors optional Mill-finish standard, custom colors optional Mill-finish standard, custom colors optional Mill-finish standard, custom colors optional
# of Blades 4 3 3 3
Equivalent Motor 2.0 hp 2 hp (equivalent motor) for 16' diameter 1.75 hp for 8' diameter 0.5 hp for 8' diameter
Voltages 230, 400, 460 240, 277, 400, 460 240, 277, 400, 460 120, 240, 277
Phase 1 or 3 1 or 3 1 or 3 1 or 3
Watts 75 – 1600 75 – 2000 500 – 1625 50 – 600
Frequency 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz 50 or 60 Hz
Coverage Up to 22,000 sq ft
85' from the fan’s center in all directions
Up to 22,000 sq ft
85' from the fan's center in all directions
Up to 22,000 sq ft
85' from the fan’s center in all directions
Up to 17,500 sq ft
75' from the fan’s center in all directions
Decibels 40 to 63 dBA depending on fan speed  Nearly silent. 38 to 42 dBA depending on fan speed Nearly silent. 38 to 42 dBA depending on fan speed Nearly silent. 38 to 42 dBA depending on fan speed
Air Speed Up to 7 mph at full speed Up to 6.4 mph at full speed Up to 5.3 mph at full speed Up to 3.9 mph at full speed
Controls Variable speed, wireless touchscreen Variable speed, wireless touchscreen Variable speed, wireless touchscreen Variable speed, wireless touchscreen
Mounting Heights 10' to 80' from finished floor to bottom of blade 10' to 80' from finished floor to bottom of blade 10' to 80' from finished floor to bottom of blade 10' to 30' from finished floor to bottom of blade
Max Weight 300 lbs 250 lbs 250 lbs 180 lbs






Up to 22,000 sq ft
85' from the fan’s center in all directions
Up to 22,000 sq ft
85' from the fan’s center in all directions
