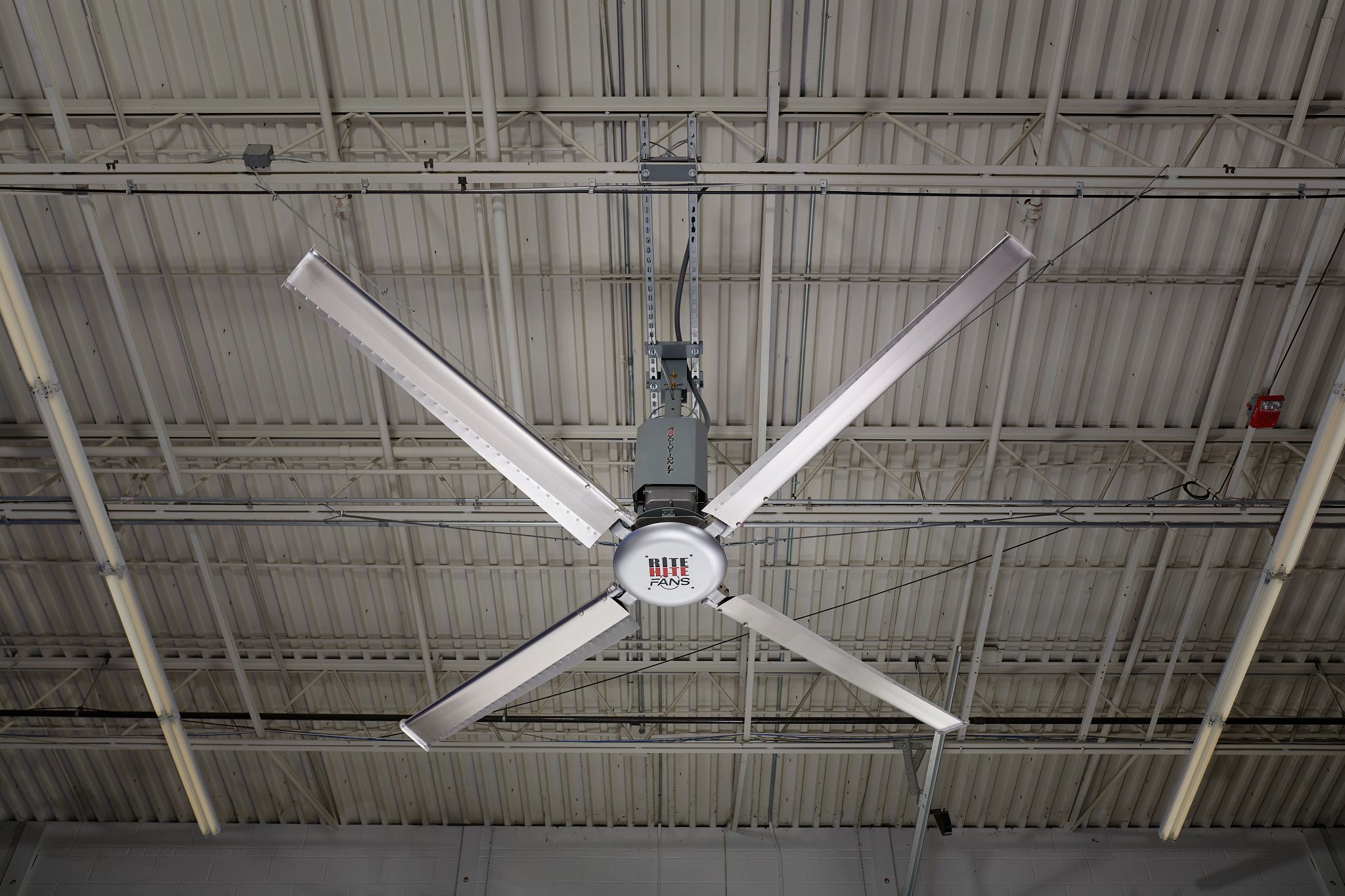

Revolution LT

Cools up to 22,000 sq ft
Geared motor
Single fan controller

Benefits

  • Available in 8’ (2440 mm), 12’ (3660 mm), 16’ (4880 mm), 20’ (6100 mm) and 24’ (7320 mm) diameters
  • Covers up to 22,000 sq. ft., moving air up to 85 ft. in all directions from the center of the fan
  • Formed aluminum blades incorporate tilt, taper, and twist to produce consistent airflow across the entire length of the blade, eliminating pockets of stagnant air under the center of the fan
  • Improve productivity by providing evaporative cooling and destratification
  • Help reduce moisture accumulation and stagnant air pockets
  • 4-blade geared motor fan for continuous air movement
  • Precision-milled layered aluminum hub and bolt
  • The blade and hub are balanced for smooth, efficient performance
  • Approximate weight is 300 lbs (Actual weight varies according to the fan size and mounting style)
  • Optional motor shroud and hub cover available
  • Custom colors and logos are available
  • The Revolution LT features a three-way motor-to-hub safety connection, as well as stabilizing cables and motor housing
  • A unique safety ring is provided for back-up security for the motor-to-hub connection
  • Each hub “resilient arm” is connected to the safety ring

The Revolution LT HVLS Fan is operated by a single fan controller and provides wired communication between the touch screen interface and fan control box.

  • View and adjust On/Off settings, fan speed and system diagnostics
  • Password protection prevents unauthorized use
  • Dimensions: 6"W x 4.75"H (15.25 cm W x 12.1 cm H). Screen size is 4" (measured diagonally)

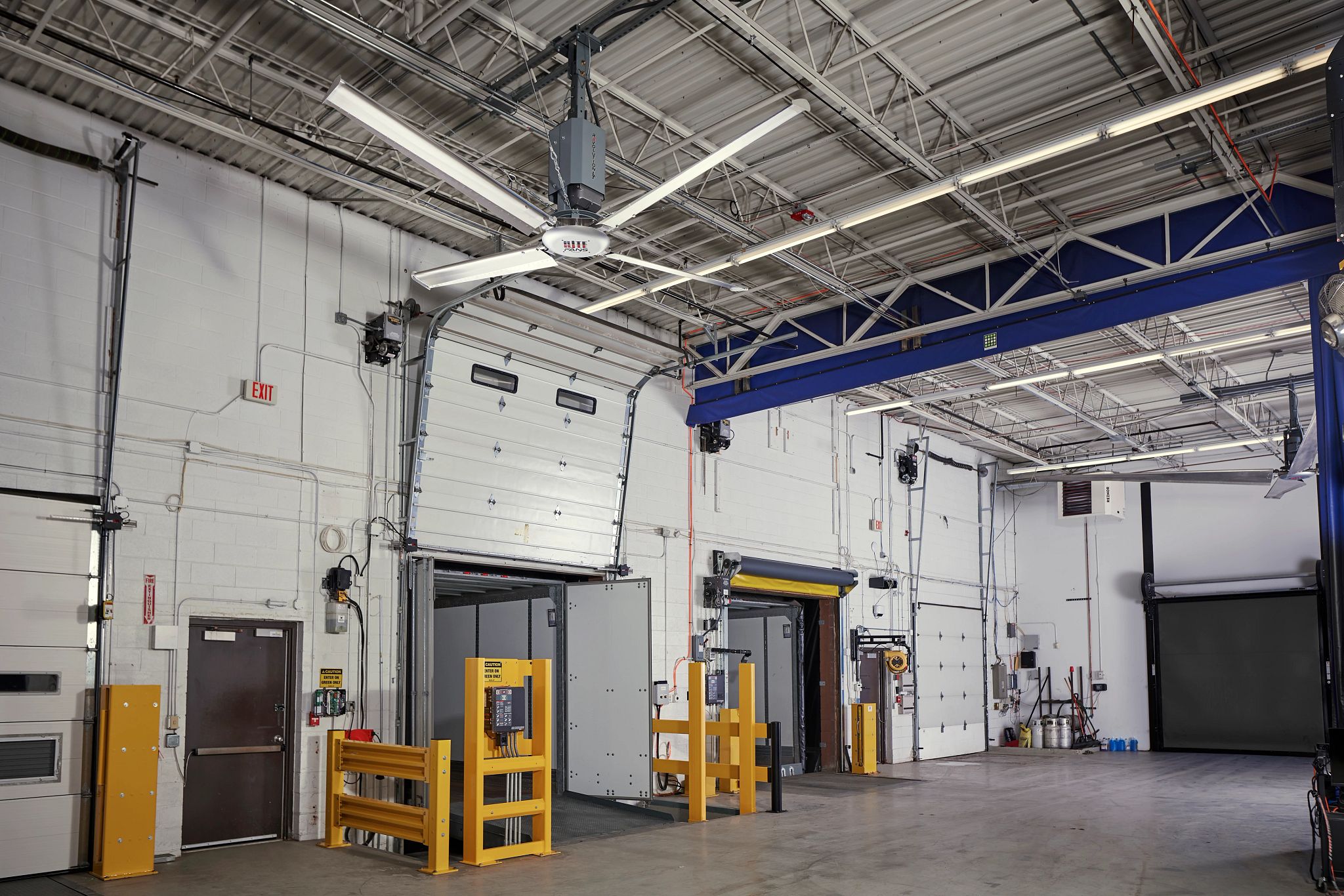

The Revolution LT HVLS fan can be a smart, economical choice for any budget. It is ideal for use in a wide variety of applications including:

  • Auto Dealerships
  • Retail buildings
  • Fulfillment, Warehouses & Distribution Centers
  • Smaller facilities in need of cooling or destratification
  • Hundreds of Other Applications
  • 3-year parts & 1-year labor warranty
  • 10-year structural integrity warranty
  • Lifetime warranty on workmanship of blades and interlocking fan arms
  • 12-month limited money-back guarantee
