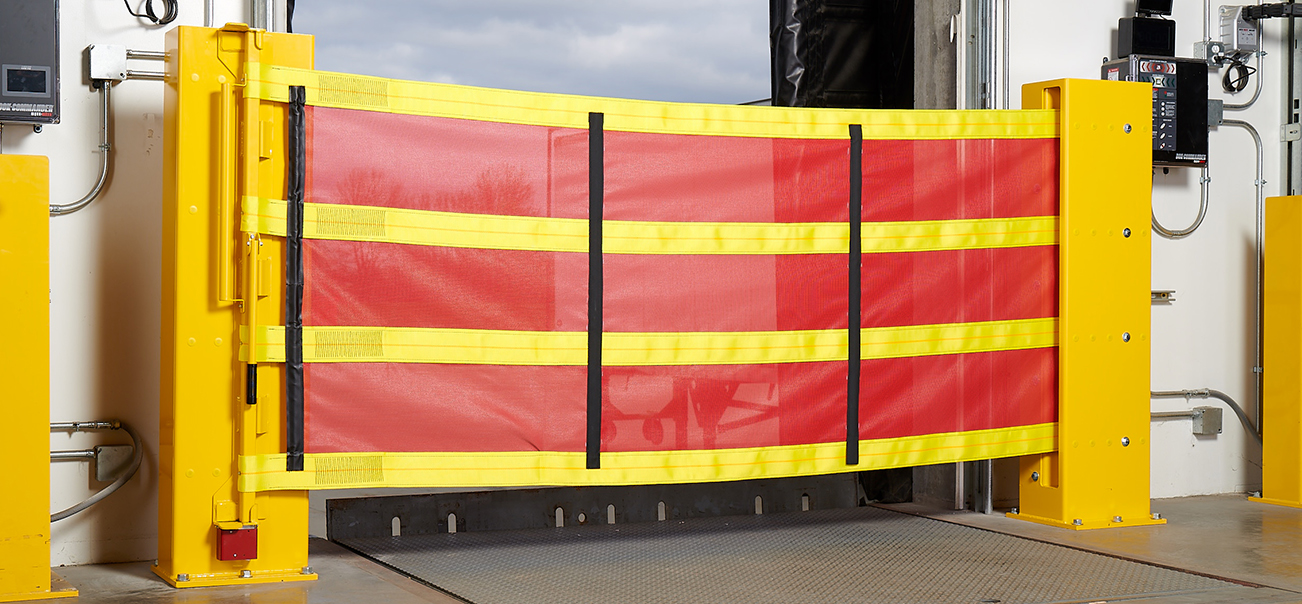

Dok-Guardian XL

58” high curtain
Protect 4-foot drop-off
Stop up to 30,000 lbs.

Benefits

  • Helps prevent fork trucks, pallet jacks, and pedestrians from falling off a loading dock.
  • Helps protect the dangerous 4-foot drop off at the loading dock that can result in serious injuries that are sometimes fatal.
  • Meets OSHA's 1910.29 (Walking Working Surfaces) guardrail requirements.
  • Secondary ergonomic assist handle provides support when securing and retracting the curtain.
  • Designed to stop up to 30,000 lb (13,636 kg) for the heavy duty and up to 5,500 lb (2,500 kg) for the light duty application. Consult the Dok-Guardian HDXL and LDXL BLAST Impact Rating Charts for complete weight and speed ratings.
  • Heavy duty application features a 58" (1475 mm) high bright red PVC-coated fiberglass mesh curtain with four bright yellow heavy-duty restraint straps and three black vertical straps and the light duty application features a 58" (1475 mm) high yellow PVC-coated fiberglass mesh curtain with four black heavy-duty restraint straps and three black vertical straps.
  • Bright colors serve as a highly visible warning sign.
  • Operated manually, the heavy duty application easily fits across openings up to 12'5" (3875 mm) wide and the light duty application easily fits across openings up to 10’5” (3175mm) wide.
  • Anchored on either side by 62” (1575 mm) tall yellow safety Warden guards, which provide excellent door track protection.
  • Retracts into one of the Wardens when loading or unloading trailer.
  • Can be used inside a facility to separate people from production and material handling equipment.
  • Designed to integrate with Rite-Hite's powerful Dok-Commander interlock system to ensure full time loading dock safety.
  • The red light on the Dok-Lok control box indicates that the Dok-Guardian's curtain is safely locked across the opening.
  • When the lock button on the Dok-Lok is pressed and the inside light turns green, the Dok-Guardian XL interlock releases, allowing for loading and unloading of trailer.
