Dok-Guardian

Highly visible barrier
Protect 4-foot drop-off
Stop up to 30,000 lbs.

Benefits

  • Helps prevent fork trucks, pallet jacks, and pedestrians from falling off a loading dock.
  • Helps protect the dangerous 4-foot drop off at the loading dock that can result in serious injuries that are sometimes fatal
  • Designed to stop up to 30,000 lbs. (13,636 kg). Consult the Dok-Guardian BLAST Impact Rating Chart for complete weight and speed ratings.
  • 44" (1120 mm) high bright red PVC-coated fiberglass mesh curtain with three bright yellow heavy-duty restraint straps.
  • Serves as a highly visible warning sign.
  • Operated manually and easily fits across openings up to 16'5" (5000 mm) wide.
  • Anchored on either side by 47" (1195 mm) tall yellow safety Warden guards, which provide excellent door track protection.
  • Retracts into one of the Wardens when loading or unloading trailer
  • Can be used inside a facility to separate people from production and material handling equipment.
  • Designed to integrate with Rite-Hite's powerful Dok-Commander interlock system to ensure full time loading dock safety.
  • The red light on the Dok-Lok control box indicates that the Dok-Guardian's curtain is safely locked across the opening.
  • When the lock button on the Dok-Lok is pressed and the inside light turns green, the Dok-Guardian interlock releases, allowing for loading and unloading of trailer.

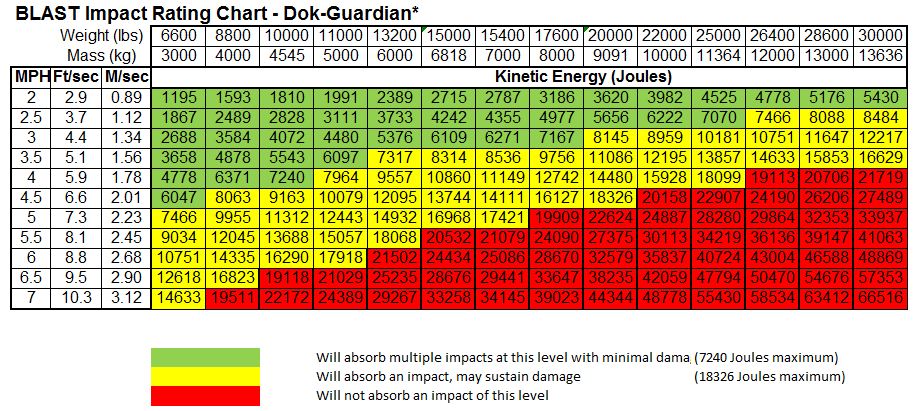

* The Barrier Load And Speed Test (BLAST) chart expresses an impact rating in terms of kinetic energy.

Consult The Science of Safety white paper for a complete explanation of the information contained within this chart.
