Slide-Air

Slide-Air

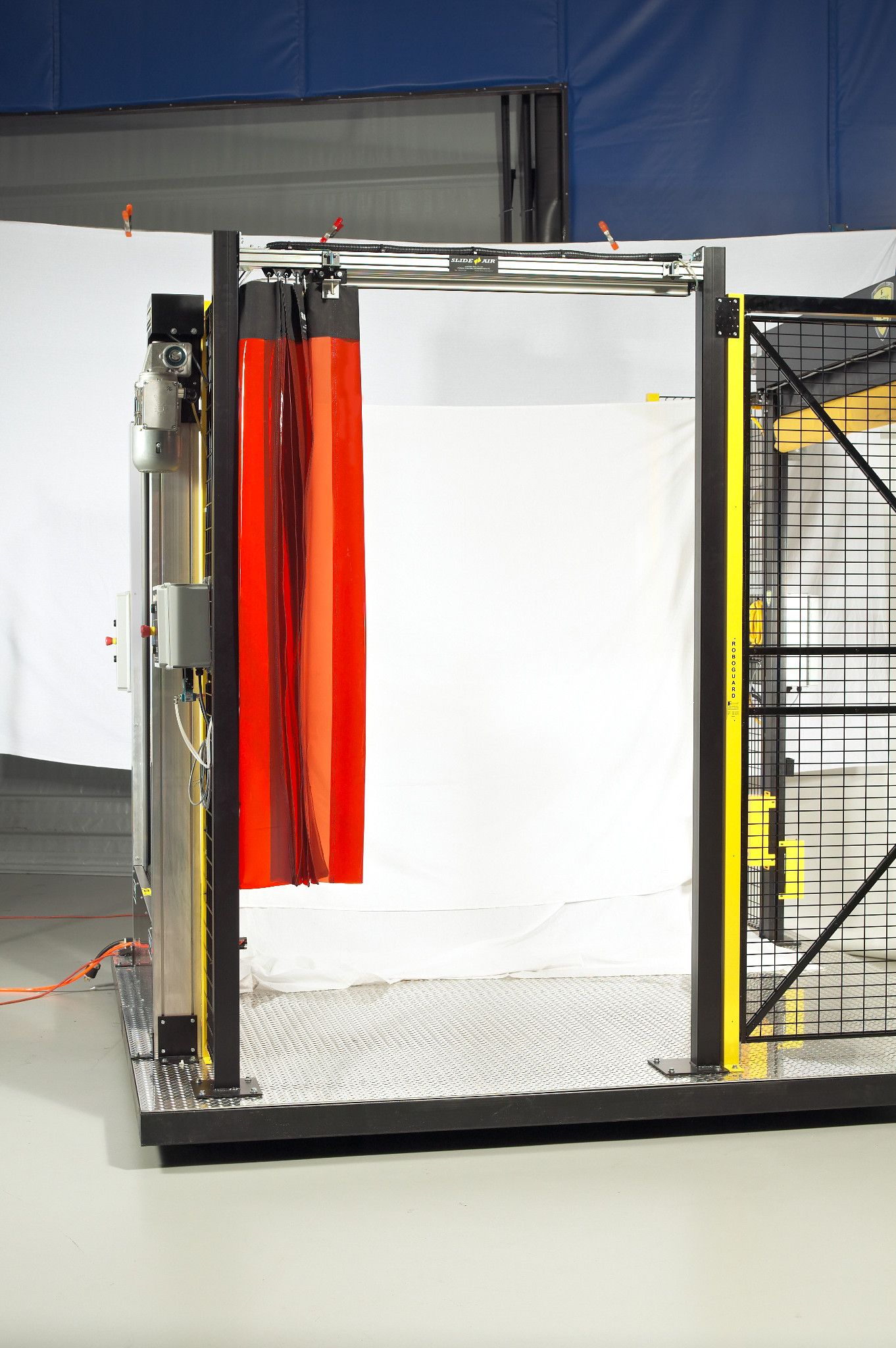

The Slide-Air Automated Safety Curtain is designed to improve safety and reduce or eliminate process driven hazards in manufacturing applications.

The Slide-Air can be used in conjunction with light curtains, area scanners or safety mats by providing separation and containment of process driven hazards. The pleated curtain design allows for minimal curtain storage area. The Slide-Air is a safe and economical industrial curtain for many manufacturing applications.

Overview:

  • Automated to the process to reduce operator fatigue.
  • Increases Productivity! Door provides clear visual that operator should be on task.
  • Proven, Safe, Reliable Design.
  • Guards your machinery and protects your employees.
  • Contains application driven hazards including weld flash/sparks/smoke, mist, flying debris and other exposure.

Features and Benefits:

  • Can be used in conjunction with light curtains, area scanners and safety mats to reduce/eliminate secondary hazards from the manufacturing process.
  • Optional Control Box/Junction Box is simple.
  • Custom Manufactured to exact size requirements.
  • Rugged Construction.
  • Pleated curtain reduces storage space when in the open position 120" wide opening can store in a 21" space.
  • 1" Bore Rodless Cylinder suited for millions of cycles - reduces maintenance costs.
  • 24" per second max. open and close speed increases productivity.
  • Optional vertical supports (2) or single cantilevered support for space considerations.
  • Limited one year warranty.
  • Comes Fully Assembled.
  • Industries #1 Pneumatically Operated Sliding Curtain.
  • Increases Productivity! Door provides clear visual that operator should be on task.
  • Fabric choices resists application driven hazards.
  • Easy Installation.
  • Adjustable air pressure controlled speed for different applications.
  • Custom 2" x 4" aluminum extrusion for easy mounting and rigidity.

Technical Information:

MODEL NUMBER:
1370 Slide-Air™ Pneumatic Safety Curtain

SIZE:
Minimum: 2'-0"W x 2'-0"H, Maximum: 10'-0"W x 12'-0"H
If larger sizes are required please contact Rite-Hite Machine Guarding

SPEED:
Adjustable, air pressure controlled up to 24" per second Operating Pressure between 60 and 90 Psi

CURTAIN MATERIAL:
Standard: 40 mil. orange PVC with 8" pleats with (PVC Meets ANSI F2.3M:2001 performance standards for welding screens and ANSI/NFPA 710 Flame resistance). Multiple colors available upon request.
Optional: 35 oz. black Superwear®(CFM approved)

HEADER MATERIAL:
2" x 4" aluminum extrusion

PNEUMATIC CYLINDER:
1" bore, rodless cylinder

CONTROLS:
Standard: Junction box, Size: 10-1/2" x 8-1/2" x 6-1/4", 24V DC 4-way control valve (optional 110V AC) NEMA 4X Enclosure
Optional: Control box, Size: 10-1/2" x 8-1/2" x 6-1/4", 110V AC with open, stop, and close pushbuttons with 110V AC 4-way control valve NEMA 4X Enclosure

SAFETY FEATURES:
Soft curtain design protects personnel and property, reduces operator fatigue by automating process, contains and guards operator from application driven hazards.

WARRANTY:
Limited 1-year parts
